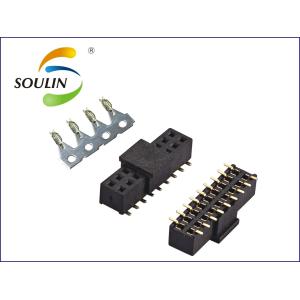

2.0mm pitch female header dual row SMT H4.0 plastic waterproof with cap without column
- "Female Header is a type of connector.
- This connector is widely used in electronic, electrical, instrument in the PCB circuit board, its role is in the circuit is blocked or isolated between the circuit, play a bridge function, take up the task of current or signal transmission.
- Usually used with row pin matching, forming a board-to-board connection; Or matching with the electronic wiring harness terminal, forming a board-to-wire connection; Can also be used independently for board to board connection.
- Because different products require different specifications, there are also a variety of sizes."
- High temperature resistant insulating plastic (UL94V-0) material: PBT(only meet the wave soldering process).
- High temperature resistant insulating plastic (UL94V-0) material: PA6T, PA9T, LCP(can meet the wave soldering, reflow welding two kinds of process).
- The color of insulating plastic can be divided into black, white, blue, natural color and so on.
- Hardware contact terminal material: brass (C2680) or phosphor copper (C5191), leather copper.
- Hardware contact terminal surface treatment: nickel plating first in gold or silver plating, bright tin plating, wuxi plating, semi-gold tin plating, etc.
| Plastic material | PA6T/PA9T+30%G.F |
| Color | black |
| Nsrlator material | Polyester(UL94V-0) |
| Contact material | Phosphor Bronze |
| Contact Plating | Au Or Sn over 40u“Ni |
| Current Rating | 0.75Amps |
| Withsatnding Voltage | AC500Vmin/Minute |
| Insulation Resistance | 1000MΩ Min |
| Contact Resisitance | 20mΩ MAX |
| Operation Temperature | -40℃+105℃ |
